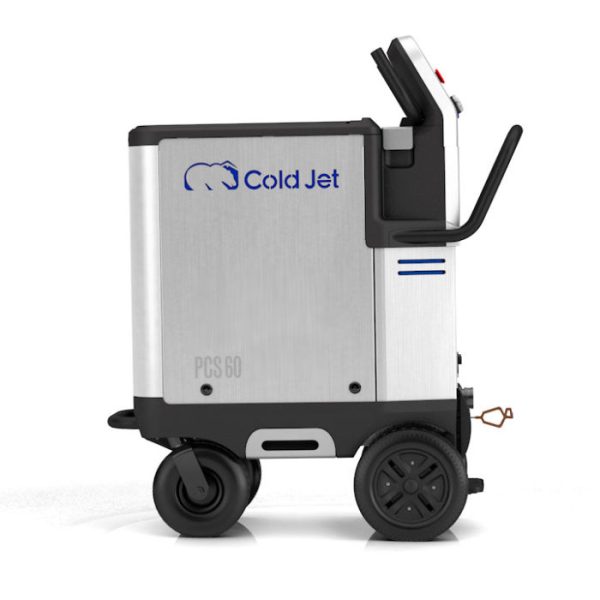

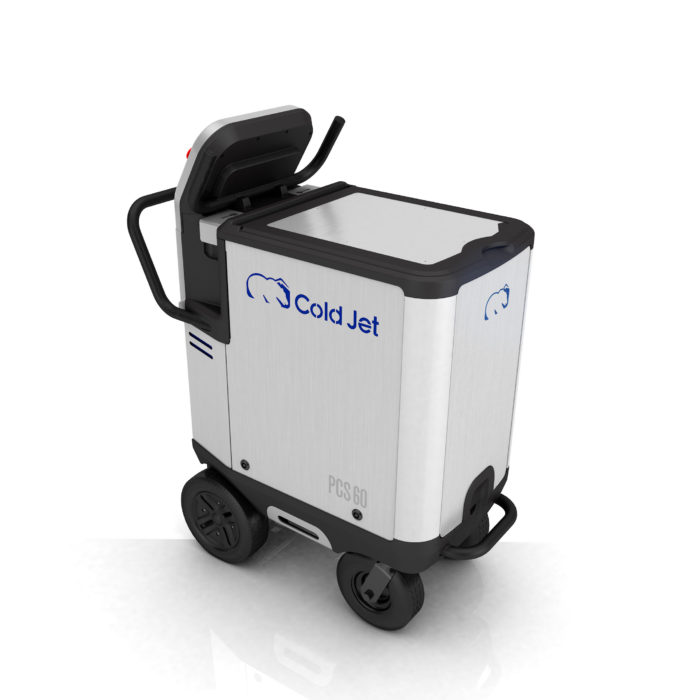

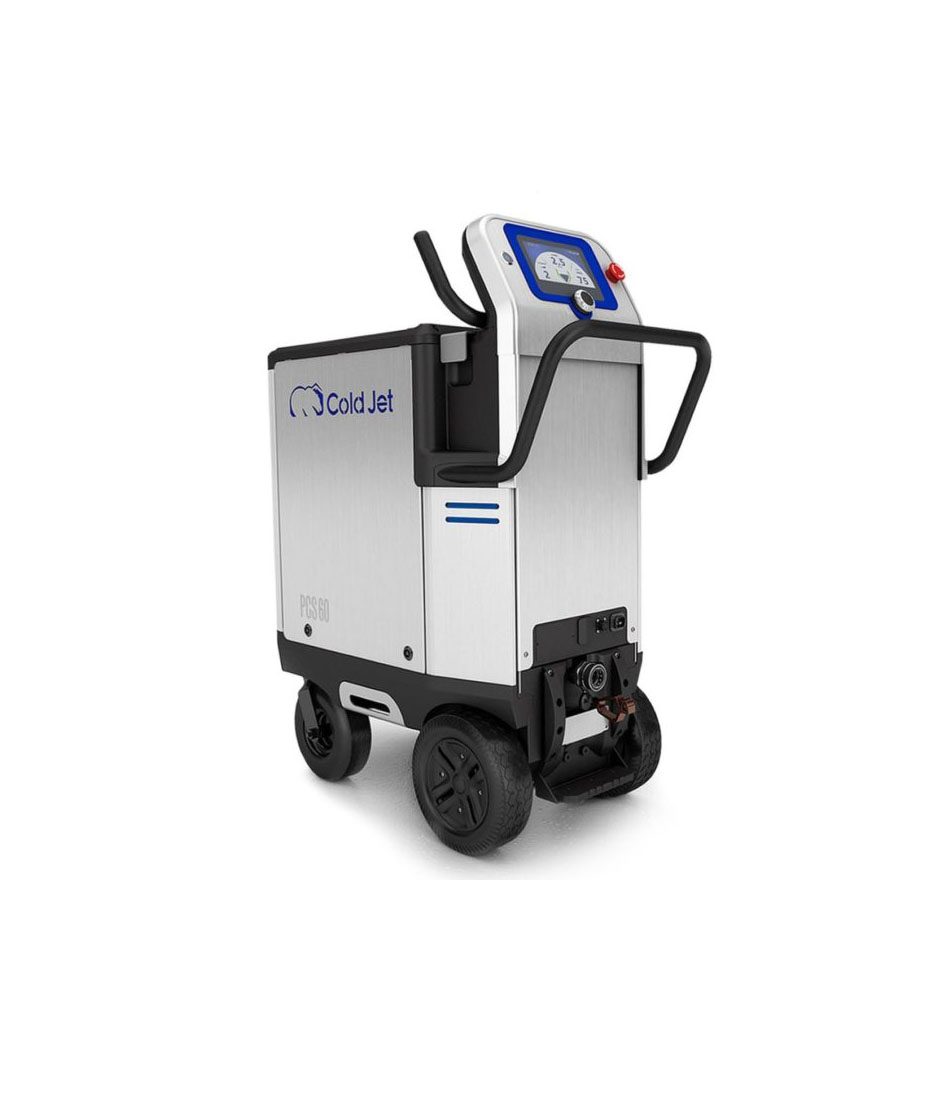

The Aero2 PCS® 60

Enhanced for the Power of Choice.
Designed to give the user complete control. Utilizing Cold Jet’s patented Particle Control™ system, dry ice is cut into diamond shaped particles in the exact dimensions chosen by the operator (0.3mm to 3mm and every size in between), allowing the user to fine-tune blasting parameters for each unique application.

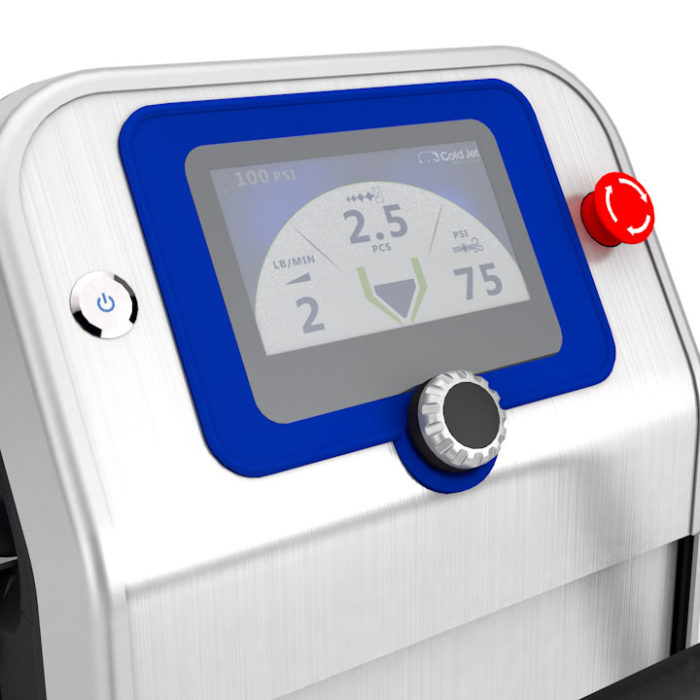

With a 7” LCD screen and digital controls, the PCS 60 provides an intuitive display that allows the user to easily view and adjust blasting parameters and machine settings. The machine also features programmable application recipes, which allows users to set and save blasting parameters, such as blast pressure, particle size and feed rate.
The PCS 60 is IoT enabled via Cold Jet’s Industry 4.0 solution, Cold Jet CONNECT®. The system provides remote monitoring and diagnostics.

Category:

Description

Features

      • Particle Control™ system: 28 particle sizes (0.3mm – 3.0mm) for greater versatility
      • Particle Control™ system: 28 particle sizes (0.3mm – 3.0mm) for greater versatility
      • Streamlined “straight-through” air system
      • Programmable Application Recipes
      • Advanced Aerodynamic Low Load Airlock Feeder
      • Patented High-Efficiency Flow Initiation Regulator
      • Patented Advanced Direct Drive Feeding System
      • Coated tool grade aluminum alloy, stainless steel and polymer frame
      • Designed for mobility and maneuverability
      • IoT Capability – Cold Jet CONNECT
      • Integration and automation ready
Specifications
Dimensions 39 in (99 cm) x 19 in (48 cm) x 45 in (114 cm)
Weight 269 lb (122 kg)
Power Requirements 110/220 VAC – 50/60 Hz transformed to 24/48 VDC; AMPS: 4.3
Hopper Capacity 60 lb (27 kg)
Display 7” LCD Screen
Feed Rate Variable – up to 4 lb/min (1.8 kg/min)
Dry Ice Particle Size Variable – 0.3mm – 3mm
Blast Pressure Range 20 – 145 psi (1.4 – 10 bar)
Supply Pressure Range 40 – 145 psi (2.8 – 10 bar)
Nozzle Air Consumption Range 12 – 100 cfm (0.3 – 2.8 m3/min) at 80 psi (5.5 bar)
Air Flow Path 3/4” Straight Through Tubing
